Show the natural character of the wood with hand sorted woods and floors. Wood characteristics class B, C, floors 9 mm plywood, mends permitted. With this drawer you will be in keeping with current trends, for your properties and private use.

Tip for the Kitchen

Upon request, floors are also possible in the thicknesses 8-10 mm in decorative chip in white, grey and anthracite.

  • White: Krono O500 PE corresponds roughly to W980 ST15 Egger
  • Light grey: Krono O112 PE corresponds roughly to U708 ST9 Egger
  • Anthracite: Krono O164 PE corresponds roughly to U963 ST9 Egger

Types

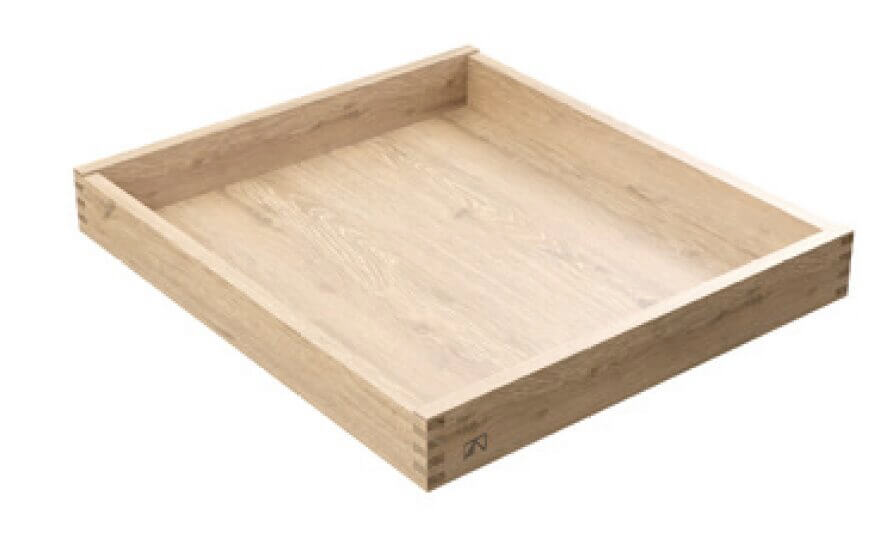

A | Type A

Bottom screwed on for roller runners (When ordering please state the height incl. the bottom)

B | Type B

Bottom grooved in for underfloor extraction

IL | Interior drawer

Front piece 15 mm lower than side piece

SCH | Schütte

Bottom grooved on 4 sides

EZ | English drawer

Front piece 15 mm lower than side piece

Siphon cut out

Fixed 200 x 150 mm centre; variable stating the 3 dimensions x/y/z

B EH1

With higher drawer back piece (80 mm) for rail;                  Width: internal dimensions

B EH2

With higher drawer back piece (80 mm) for rail;
Width: drawer external dimensions

B EH2 | Rail

with higher drawer back piece (80 mm) for rail
Width: drawer external dimensions incl. rail aluminium anodised

Type GLA oder GLA w. g.

Glass cut-out incl. glass or with 6 mm groove for glass provided by the customer

Type GLA 20 * oder GLA 20 w. g.

Glass cut-out incl. glass or with groove for glass provided by the customer

Type EZ Trend

Front piece 15 mm lower than side piece

Design Front Type IL

Design Front Type SCH

Light Side Type B

Height 255 mm

Light Side Type IL

Height 255 mm

Type register pullout drawer 1 shelf

For the depths of 390 or 490 mm, the width 390 mm is possible

Type register pullout drawer 2 shelf

For the depths of 390 or 490 mm, the width 750 mm is possible

Millings

V | 60 x 40

C | 120 x 30

O | 120 x 25

K | Diameter 30

L | 120 x 30

Surfaces

  • lacquered (standard) – single-component varnish, semi-gloss
  • stained – with stain and/or stain specifications + stain samples provided by the customer
  • oiled/waxed – twice with wax oil
  • untreated/raw
  • white oiled
  • Buffalo wax
  • brushed inside and outside
  • Natural effect, varnished (not suitable for dark wood types such as e. g. walnut and smoked oak)
  • RAL varnished 9010

Extras

  • Drawer incl. coupling
  • Drawer incl. lateral slt milling for slides
  • Drawers in special heights (intermediate heights)

DRAWER FLOORS

We use 10 mm jointing for our drawers! Jointing variable at top and bottom with special heights! Drawers of type B, IL and EZ are always delivered with drilled hole in the back piece for drawer slide!

In the case of the interior drawer or English drawer the front piece is 15 mm deeper, so that the coupling and slide are covered.

The height of the side piece is always stated as the heght. With an English drawer, the height of the drawer front piece is approx. 50-70 % of the height of the side piece. Drilling holes for drawer front pieces proportional to the drawer size.

The front piece is 2 mm higher with Typ IL.

Drawer floors

  • 9 mm (standard) – 12 mm
  • Connection: clamped (standard) – screwed
  • The floors are veneered on the top & bottom in the respective wood type (face veneer). Exception: Drawer in birch and white beech, birch plywood 9 mm is used here.

Floor cabinet:
Wood characteristics class B, C, floors 9 mm plywood, mends permitted

TYPE B

TYPE IL

DETAILS TYPE GLA 20

Wood types

Cherry

Ash

American walnut

Beech

Birch

Maple

Elm

Oak

Calculation

Maximum drawer height

Blum Tandem & Movento / Hettich Actro 5D
Parital extension runner KIL minus 21,5 mm
Full extension runner KIL minus 24,5 mm

Grass Dynapro
Full extension runner KIL minus 23 mm

Hettich Quadro V6 silent System/Quadro 4D
Partial extension runner KIL minus 20 mm
Full extension runner KIL minus 22 mm

Drawer external depth

Blum Tandem & Movento / Hettich Actro 5D
Nominal length of slide minus 10 mm
Interior drawer + 3 mm

Grass Dynapro
Nominal length of slide minus 10 mm
Interior drawer + 3 mm

Hettich Quadro V6 silent System/Quadro 4D
Nominal length of slide
Interior drawer + 13 mm

Drawer external width

Blum Tandem & Movento / Hettich Actro 5D
KIL minus 15 mm

Grass Dynapro
KIL minus 15 mm

Hettich Quadro V6 silent System/Quadro 4D
KIL minus 13 mm

Side heights (standard)
55 – 75 – 95 – 115 – 135 – 155 – 175 – 195 – 215 – 235 — 255 – 275 – 295 – 315 – 335 – 355 – 395 mm*

Side heights (dovetail jointing)
58 – 84 – 110 – 136 – 162 – 188 – 214 – 240 – 266 – 292 mm*

Side thickness (standard)
13,5 mm

*from a height of 215 mm, we recommend our multiplex drawers.

We cannot grant any guarantee regarding possible crack formation in high solid wood drawers.

For detailed information and sketches please look here:
catalog / data sheets / sketches
