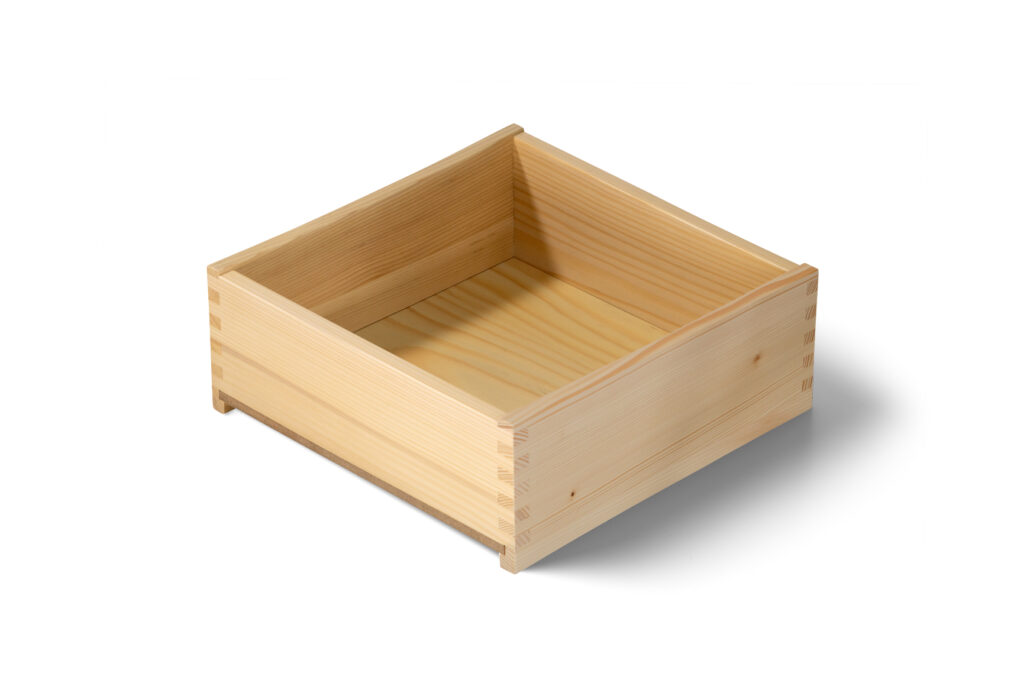

Superior
drawers

Achieve top quality with hand-sorted woods combined with floors decoratively veneered on both sides; just right for high-quality furniture construction. Grade: slight differences in colour and wood inclusions possible. Drawer thickness 13,5 mm; Floors 9 mm (standard) and/or 12 mm against surcharge

NEW

All wood types are also available in brushed.

TIP FOR THE KITCHEN

Upon request, floors are also possible in the thicknesses 8-10 mm in decorative chip in white, gey and anthracite.

White: Krono O500 PE corresponds roughly to Decor W980 ST15 Egger
Light grey: Krono O112 PE corresponds roughly to Decor U708 ST9 Egger
Anthracite: Krono O164 PE corresponds roughly to Decor U963 ST9 Egger

Types

A | Type A

Bottom screwed on for roller runners (When ordering please state the height incl. the bottom)

B | Type B

Bottom grooved in for underfloor extraction

IL | Interior drawer

Front piece 15 mm lower than side piece

SCH | Schütte

Bottom grooved on 4 sides

EZ | English drawer

Front piece 15 mm lower than side piece

Siphon cutout

Fixed 200 x 150 mm centre; variable stating the 3 dimensions x / y / z

B EH1

With higher drawer back piece (80 mm) for rail; Width: internal dimensions

B EH2

With higher drawer back piece (80 mm) for rail; Width: drawer external dimensions

B EH2 | Rail

With higher drawer back piece (80 mm) for rail; Width: drawer external dimensions incl. rail aluminium anodised

Type GLA oder GLA w. g.

Glass cut-out incl. glass or with 6 mm groove for glass provided by the customer

Type GLA 20 * oder GLA 20 w. g .

Glass cut-out incl. glass or with groove for glass provided by the customer

Type EZ Trend

Front piece 15 mm lower than side piece

Design Front Type IL

Design Front Type SCH

Light Side Type B

Height 255 mm

Light Side Type IL

Height 255 mm

Type register pullout drawer 1 shelf

For the depths of 390 or 490 mm, the width 390 mm is possible.

Type register pullout drawer 2 shelf

For the dephts of 390 of 490 mm, the width 750 mm is possible

MILLINGS

V | 60 x 40

C | 120 x 30

O | 120 x 25

K | Diameter 30

L | 120 x 30

SURFACES

laquered (standard) – single-component varnish, semi-gloss
stained – with stain and/or stain specifications + stain samples provided by the customer
oiled/waxed – twice with wax oil
untreated/raw
white oiled
buffalo wax
brushed inside and outside
natural effect, varnished (not suitable for dark wood types such as e.g. walnut and smoked oak)
RAL varnished 9010
Oil and stain trend colours stained-varnished

EXTRAS

Drawer incl. coupling
Drawer incl. lateral slot milling for slides
Drawers in special heights (intermediate heights)

DRAWER FLOORS

We use 10 mm jointing for our drawers! Jointing variable at top and bottom with special heights! Drawers of type B, IL and EZ are always delivered with drilled hole in the back piece for drawer slide!

In the case of the interior drawer or English drawer the front piece is 15 mm deeper, so that the coupling and slide are covered. The height of the side piece is always stated as the height.

With an English drawer, the height of the drawer front peice is approx. 50-70 % of the height of the side piece. Drilling holes for drawer front pieces proportional to the drawer size.

The front piece is 2 mm higher with Typ IL.

DRAWER FLOORS

Thickness: 9 mm (standard) – 12 mm
Connection: clamped (standard) – screwed
The floors are veneered on the top & bottom in the respective wood type (face veneer). Exception: Drawer in birch and white beech, birch plywood 9 mm is used here.

Floors cabinet:
Wood characteristics class B, C, floors 9 mm plywood, mends permitted.
