Diagonal / Wood Grates
Description

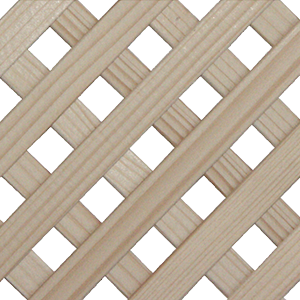

Diagonal grates available in solid in 45° and 90°. In the case of mirrored usage, ensure that they cannot simply be reversed! The front slats of the wooden grate 45° run from the bottom-left to top-right on the back as well.
Types
TYPE 200
TYPE 300
TYPE 400

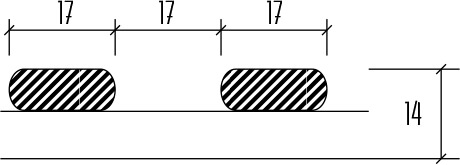

TYPE 500
TYPE 600
DESIGN
Wooden grate in spruce solid, sanded, ready to be stained and varnished.
SURFACE
- Untreated/raw
DETAIL
- Birch/beech steamed
- Oak/ash/maple
- Cherry
- Spruce (standard)
- Larch
- Alder
Type
Type 200
Type 300
Type 400
Type 500
Type 600
Size
1250 / 625
1250 / 1250
2000 / 900
1250 / 625
1250 / 1250
2000 / 900
1250 / 625
1250 / 1250
2000 / 900
1250 / 625
1250 / 1250
2000 / 900
1250 / 625
1250 / 1250
2000 / 900
Article No.
DG 204
DG 214
DG 224
DG 304
DG 314
DG 324
DG 404
DG 414
DG 424
DG 505
DG 515
DG 525
DG 606
DG 616
DG 626
45° standard

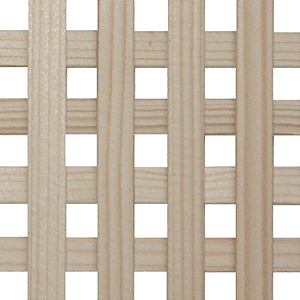

90°
Special customized production for type 200, 300 and 400 on inquiry! (not possible with type 500 and 600)
All dimensions in mm.
Type 600 can also be used on both sides, but is only profiled on one side!
