Simply practical in decorative chip; your alternative to RAL varnish. Corner joint only possible dowelled. Sides glued top and bottom with 1mm ABS edges, Side thickness 16 mm (anthracite 18 mm, notched to 16 mm at bottom) base 8 mm thick

Types

A | Type A

Bottom screwed on for roller runners (When ordering please state the height  incl. the bottom)

B | Type B

Bottom grooved in for underfloor extraction

IL | Interior drawer

Front piece 15 mm deeper than side piece

SCH | Schütte

Floor grooved on 4 sides

Siphon cutout

fixed 200 x 150 mm centre; variable stating the 3 dimensions x/y/z

B EH1

With higher drawer back piece (80 mm) for rail                    Width: internal dimensions

B EH2

With higher drawer back piece (80 mm) for rail
Width: drawer external dimensions

TYPE EH2 | Rail

With higher drawer back piece (80 mm) for rail
Width: Drawer external dimensions incl. rail white RAL

Light Side Type B

Height 255 mm

Light Side Type IL

Height 255 mm

Type register drawer  compartment

For the depths 390 or 490 mm, possible with the width 390 mm

Type register drawer 2 compartment

For the depths 390 or 490 mm, possible with the width 750 mm

Colours

White

Metallic

Grey

Anthracite

Facts

CONNECTION

dowelled (standard)

BOTTOM

Bottom screwed (standard)

8 mm base (standard)

OTHER DESIGN

Thick edge possible all the way around on inquiry, side slot milling for guide (18, 28, 38)

* The front and back pieces are only edged at the top.

Calculation

Maximum drawer height

Blum Tandem & Movento / Hettich Actro 5 D
Partial drawer KIL – 21,5 mm full drawer KIL -24,5 mm
Grass Dynapro                                                                                                                                                                                                                                          Full extension runner KIL – 23 mm
Hettich Quadro V6 silent System/Quadro 4 D
Partial extension runner KIL minus 20 mm full extension runner KIL – 22 mm

DRAWER EXTERNAL DEPTH
Blum Tandem & Movento / Hettich Actro 5 D
Nominal legth of slide – 10 mm, interior drawer + 6 mm
Anthracite interior drawer + 8 mm
Grass Dynapro
Nominal length of slide – 10 mm, interior drawer + 6 mm
Anthracite interior drawer + 8 mm
Hettich Quadro V6 silent System/Quadro 4 D
Nominal length slide, interior drawer + 16 mm
Anthracite interior drawer + 18 mm

DRAWER EXTERNAL WIDTH
Blum Tandem & Movento / Hettich Actro 5 D
KIL minus 10 mm
Grass Dynapro
KIL minus 10 mm
Hettich Quadro V6 silent System/Quadro 4 D
KIL minus 8 mm

Slim White 14 mm

DRAWER EXTERNAL DEPTH

Blum Tandem & Movento / Hettich Actro 5 D
Nominal length of slide – 10 mm, interior drawer + 4 mm
Grass Dynapro
Nominal length of slide – 10 mm, interior drawer + 4 mm
Hettich Quadro V6 silent System:
Nominal length slide, inerior drawer + 14 mm

DRAWER EXTERNAL WIDTH

Blum Tandem & Movento / Hettich Actro 5 D
KIL minus 14 mm
Grass Dynapro KIL minus 14 mm
Hettich Quadro V6 silent System/Quadro 4D
KIL minus 12 mm

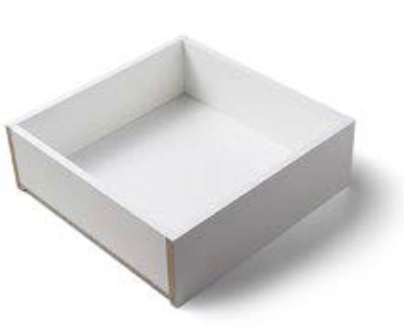

SPECIFICATIONS

Drawer coated white (similar Egger W1000 ST9); carrier material of side 14 mm MDF;  base 8 mm decor chip white, top and bottom with 1 mm ABS edge
